VITRA C2.25

STAGE V ENGINE

Environmentally friendly engine with 25 HP

SILENT CABIN SUSPENSION

Newly developed hydraulic cab suspension

HIGH LOAD CAPACITY

Load capacity of 1320 kg - The largest of the class

SIMPLE OPERATION

Ensure short training and efficient work

MULTI-FUNCTIONALITY

One machine for all the year‘s tasks

See Data sheet

Photo gallery

KOMPAKT & FLEKSIBEL

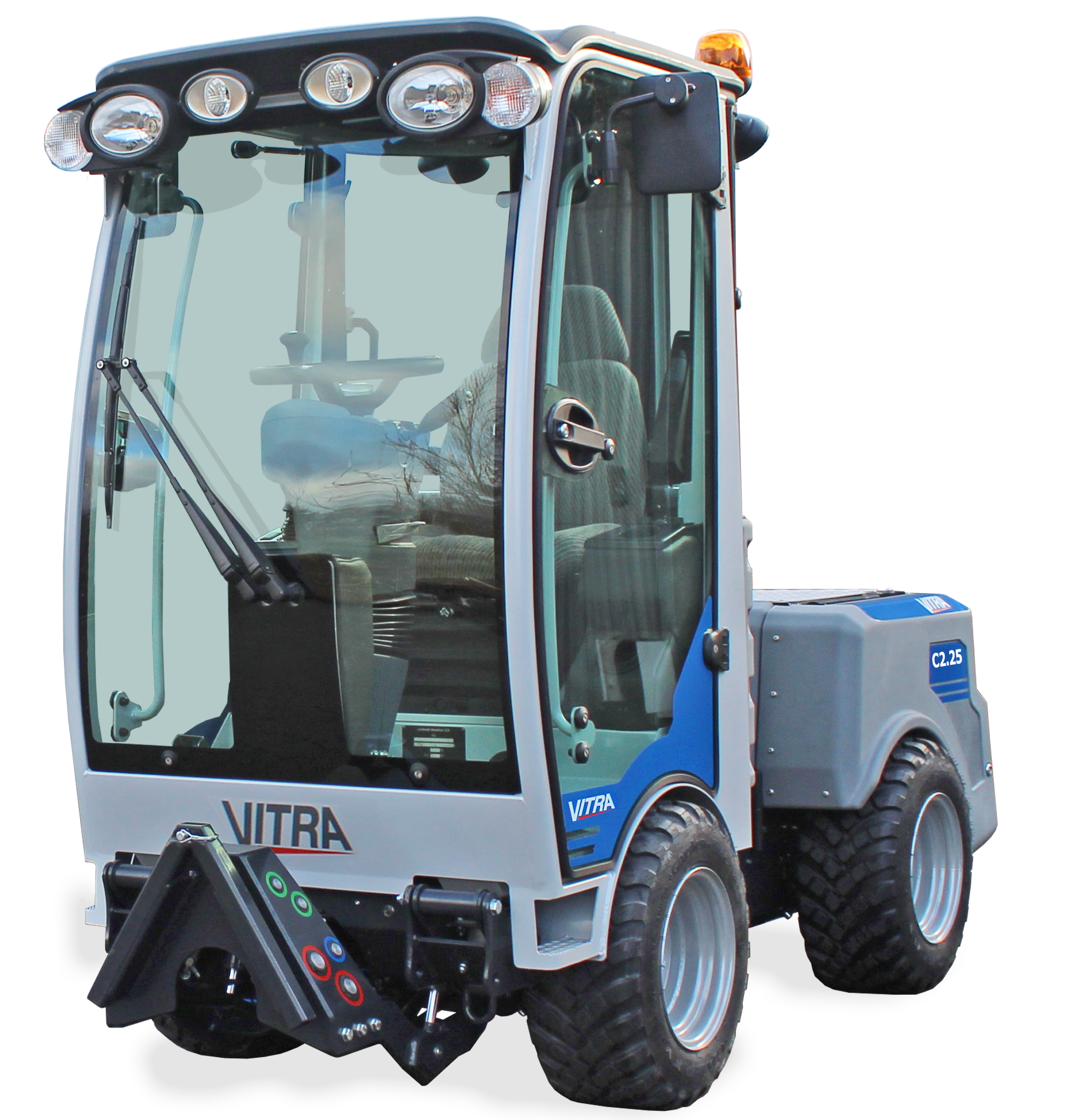

The Vitra C2.25 is the smallest model in the series and with a strong chassis of only 105 cm in width, articulation and 4wd, it is both compact and flexible, perfect for a working day in a tight urban environment. With a strong and environmentally friendly STAGE V engine, it also contributes to a good environment without compromising performance.

Danfoss drivlinje, kombineret med en komfortabel kabine sikrer den højeste ydelse samt et enestående fører- og arbejdsmiljø. Det hydrauliske "SilentCabin" affjedringssystem sikrer optimal stabilitet og eliminere effektivt støj og vibrationer, som samlet set giver en behagelig og effektiv arbejdsplads, med let betjening og godt udsyn.

Funktioner & Fordele

C2.25-Motor
C2.25-Silent-cabin
C2-kabine

The new Vitra C-Series has full focus on easy accessibility
for both the daily check and for general service access.

The two side covers are mounted on strong hinges and can be easily swung out to the side to provide good access to the engine compartment. The top cover is easily removed - also with an attachment mounted and the daily check and service work can not only be done unhindered, it is done easily without demounting the attachment.

Vitra C-Serien er udstyret med det nye "Silent Cabin" kabine ophæng som består af op til 8 hydrauliske dæmpere.

The newly developed suspension system ensures comfort, without compromising driving characteristics and stability. The system effectively minimizes vibrations and noise and ensures the driver optimal working conditions even on a long working day. The suspension has no maintenance and no expensive wheel suspension which gets worn.

The cabin in the C-Series has been developed with focus on an optimal working environment and driving comfort.

With ergonomically improved access, multi-adjustable steering column and sprung seat combined with simple operation, ISO-approved high-performance heating and ventilation system and an optimal view, it is ensured that a comfortable and ergonomic workplace can always be
– også selv om maskinen benyttes af skiftende chauffører.

Technical Specifications

Engine:

Performance:

Pollution norm:

Fuel:

Driving speed:

Noise level in cabin:

Front Lift: (Lifting capacity)

PTO:

Small PTO:

Length:

Width:

Height:

Wheelbase:

Ground clearance:

Turning radius:

Wheel size:

Weight / Running weight:

Total weight:

Load capacity:

Trailer: (Braked / Not Braked)

Yanmar

25 HK  / 18 KW

STAGE V

Diesel (28 l.)

0-27 km/h.

< 75 db(A)

Kat 0 (450 Kg.)

Max 50 l. / 200 bar

Max 15 l. / 160 bar

2790 mm.

1070 mm.

1980 mm.

1300 mm.

150 mm.

731 mm.

240/60-12

1160 / 1220 Kg.

2500 Kg.

1320 Kg.

1250 / 750 Kg.

WINTER

Snow clearing with brush, dozer blade or V-plough.
Drop- or disc spreader with high load capacity.
Truckbed with the possibility of direct reading in spreader.

HAVE & PARK

Mowing with the option of rear discharge and mulching.
Ability grass collector, hedge cutter, etc.
Leaf collection with high load capacity.

OUTDOOR CLEANING

PM2.5/10 approved sweeping suction with superior suction power.
Effective weed control with hot air, hot water or weed brush.
Front shovel, hydraulic truckbed, pallet forks etc.

QUESTIONS? – Klik her for at finde din lokale Vitra forhandler

A TRUE MULTI MACHINE

Vitra, with its flexibility and superior strength, is the perfect multi-machine for all work tasks - all year round. So why have one machine for each seasonal task, when you can easily handle them all with a Vitra?

Med Vitra's universal montagesystemer sikres let montage af de forskellige
options is ensured, so that there is virtually no task that Vitra cannot solve!

Go to attachments..
