VITRA C3.75

STAGE V COMMON RAIL

Environmentally friendly engine with 75 HP

SILENT CABIN SUSPENSION

Newly developed hydraulic cab suspension

HIGH LOAD CAPACITY

Load capacity of 1670 kg - The largest of the class

SIMPLE OPERATION

Ensure short training and efficient work

MULTI-FUNCTIONALITY

One machine for all the year‘s tasks

Slide

Download Data

Photo gallery

See Presentation Video

HIGH PERFORMANCE - HIGH COMFORT

Equipped with the latest, eco-friendly STAGE V engine of 75 HP with 30% higher torque and a load capacity of 1670 kg, the C3.75 does not go out of the way for even demanding tasks. Combined with the complete Danfoss powertrain with ”EasyDrive” driving programs, the strength and comfort combine to the full.

The comfortable cabin ensures a unique driving and working environment, where the hydraulic ”SilentCabin” suspension system ensures the machine optimal stability and effectively eliminates noise and vibration - overall, it provides a comfortable and efficient workplace, with automatic climate system, easy operation and good vision.

Features & Benefits

The new Vitra C-Series has full focus on easy accessibility
for both the daily check and for general service access.

The two side covers are mounted on strong hinges and can be easily swung out to the side to provide good access to the engine compartment. The top cover is easily removed - also with an attachment mounted and the daily check and service work can not only be done unhindered, it is done easily without demounting the attachment.

The Vitra C-Series is built with the new "Silent Cabin" cabin suspension which consists of up to 8 hydraulic dampers.

The newly developed suspension system ensures comfort, without compromising driving characteristics and stability. The system effectively minimizes vibrations and noise and ensures the driver optimal working conditions even on a long working day. The suspension has no maintenance and no expensive wheel suspension which gets worn.

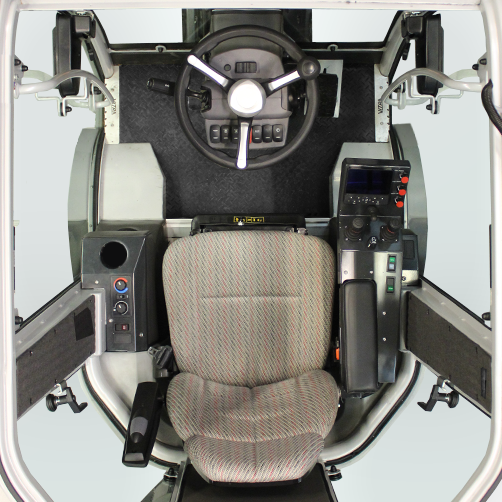

The cabin in the C-Series has been developed with focus on an optimal working environment and driving comfort.

With ergonomically improved access, multi-adjustable steering column and sprung seat combined with simple operation, ISO-approved high-performance heating and ventilation system and an optimal view, it is ensured that a comfortable and ergonomic workplace can always be achieved
– også selv om maskinen benyttes af skiftende chauffører.

Technical Specifications

Engine:

Performance:

Pollution norm:

Fuel:

Driving speed:

Noise level in cabin:

Front Lift: (Lifting capacity)

PTO:

Small PTO:

Length:

Width:

Height:

Wheelbase:

Ground clearance:

Turning radius:

Wheel size:

Weight / Running weight:

Total weight:

Load capacity:

Trailer: (Braked / Not Braked)

Caterpillar

75 HK  / 55 KW

STAGE V

Diesel (80 l.)

0-40 km/h.

< 75 db(A)

Kat 1N (950 Kg.)

0-75 l. / 280 bar

0-75 l. / 280 bar

3416 mm.

1100 mm.

1983 mm.

1740 mm.

186 mm.

1120 mm.

26″ x 12″ – 12″

1710 / 1830 Kg.

3500 Kg.

1670 Kg.

2250/750 Kg.

WINTER

Snow clearing with brush, dozer blade or V-plough.
Drop- or disc spreader with high load capacity.
Truckbed with the possibility of direct reading in spreader.

See attachments for Winter Service..

GREEN CARE

Mowing with the option of rear discharge and mulching.
Ability grass collector, hedge cutter, etc.
Leaf collection with high load capacity.

See attachments for Green Care..

OUTDOOR CLEANING

PM2.5/10 approved sweeping suction with superior suction power.
Effective weed control with hot air, hot water or weed brush.
Front shovel, hydraulic truckbed, pallet forks etc.

See attachments for Outdoor Cleaning..

QUESTIONS? - Click here to find your local Vitra dealer

A TRUE MULTI MACHINE

With its flexibility and superior strength, Vitra is the perfect multi-machine
for all kind of tasks - year-round. So why have one machine for each of the
season's tasks, when you with a Vitra, can easily handle all of them?

Vitra's universal mounting systems ensure easy and fast mounting of the many
different attachment options so there is virtually no task Vitra cannot solve!
